Min. Whakatau:1 Piece/Pieces

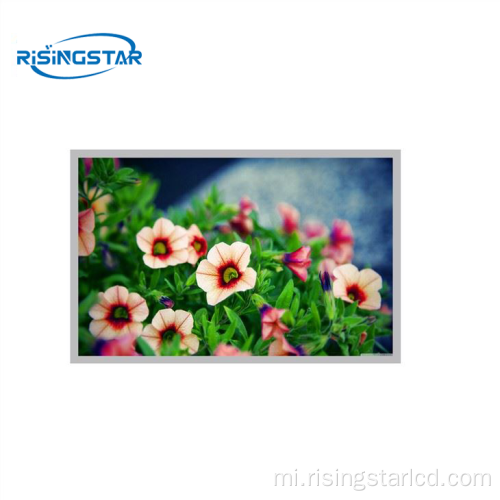

Tauira No.: LQ150X1LW96
Ko te whakatau a LQ150X1LW996 ko te 1024 (RGB) × 768 (XGA), ko te paanga tauwehe e 4: 3 (te whanui: te teitei), ka whakaritea nga pika i nga whiu rgb. Ko te rahi o te whakaaturanga o te LQ150X1LW96 ko te 304.128 × 228.096 (W × H) MM, ko te rahi o waho te 326.5 (h) × 10.1 (D) mm. Matte Whakaoti, Pakeke (3h), Taumaha Taumaha 950G (Max.)
Ko te maaramatanga e whakamahi ana i tetahi puna marama-momo, ko te pāmahana whakahaere ko -20 ~ 70 ~ 70 ~ 70 ~ 70 ~ 70 7 e tika ana mo te kaupapa ahumahi me te rongoa.
| brand | Sharp | Model name | LQ150X1LW96 |
| size | 15inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1024(RGB)×768 [XGA] 85PPI | Pixel configuration | RGB vertical bar |
| Display Area | 304.128×228.096mm(H×V) | Surface treatment | Fog surface，Hard coating (3H) |
| Visual size | 307.2×231.1mm(H×V) | Contrast Ratio | 1500:1 (Typ.) (TM) |
| Brightness(cd/m²) | 500cd/m²(Typ.)or customized | Outline dimension | 326.5×253.5×10.1(H×V×D)mm |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | work environment | Storage temperature: -25 to 70 °C Operation Temperature: -20 to 70 °C |
| Signal interface | LVDS (1 ch, 6/8-bit),erminal,20 pins | ||
| supply voltage | 3.3V (Typ.) |
Q: He kaiwhakanao koe (wheketere)?
A: Ae, ko matou. Kei te waatea ano hoki a OEM / ODM i konei.Elcon ki te whakapuaki i o whakaaro ki a maatau. Ko ta matou pai ki te whakarato otinga tino pai mo koe.
Q: Ka taea e au te hoko tauira mo taku ota?
A: Ae, tena koa koa ki te whakapā atu ki a maatau.
Taonga wera: LQ150X196 Sharp TFL LCD Paewhiri LVDS mata, China, Factory, Utu, Matapaki Whakaaturanga, Rarangi Whakaaturanga o waho, Paewhiri TV Tuuturu 1000nits LCD mata
15 "LQ104V1DGg62 550 NIT TF New Rōpiti
15inch sharp lq150x1lg96 TFT LVDS Paewhiri
